MDS11 APC RBC11 Compatible Replacement

MDS11 APC UPS REPLACEMENT BATTERY KIT

Suitable to replace the APC RBC11 replacement battery cartridge

Features

• Kit comes pre-assembled with all cables and connectors as shown
• High quality CSB batteries as used by APC themselves
• Install date label to remind you when the kit was installed
• Installation tutorial CD supplied
• Battery recycling service for your old batteries
• Freephone telephone support on 0800 310 2100

This easy to install battery replacement cartridge for your APC UPS.

These replacements for the APC RBC11 kit are manufactured by us using CSB Battery blocks. These are the exact same brand of batteries used by APC in the original factory installation. We are the sole UK importer and distributor of the CSB Battery brand.

Installation

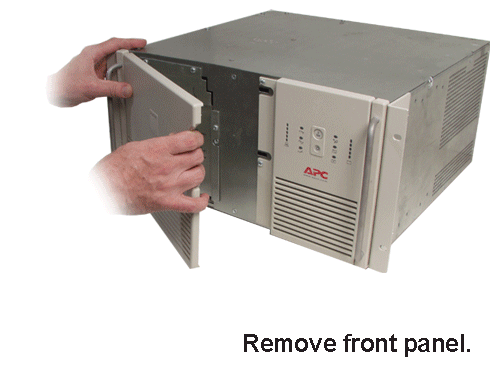

To install remove the plastic front panel and undo the two screws that hold the battery compartment door closed. The door will swing down revealing the first of the two battery blocks. Remove the plug from the top left corner and pull out the first battery cube. Repeat for the second unit behind. The old batteries can be quite tight to remove so you may need to pull fairly hard. Please be careful as they are quite heavy.

The new batteries can now be easily fitted do not forget to firmly re-connect the connectors for both blocks. Replace the front panel and you are finished. If in any doubt call us on 0800 31 2100 for advice or use a qualified technician.

Please note: APC & RBC are registered trade marks of American Power Conversion Corporation and MDS Battery Ltd use them for reference purposes only.

We would also wish to make it clear that MDS Battery Ltd are not an authorised APC dealer and this is not an APC branded product.

APC RBC11 REPLACEMENT BATTERY KIT

Suitable for the following APC UPS systems

APC Smart UPS SU24XLBP SU1400XLTNET
APC Smart UPS SU1400RMXLTNET SU2000
APC Smart UPS SU2200 SU2200NET
APC Smart UPS SU2200RM SU2200RMNET
APC Smart UPS SU2200RMXL SU2200RMXLT
APC Smart UPS SU2200XL SU2200XLTNET
APC Smart UPS SU3000 SU3000NET
APC Smart UPS SU3000RM SU3000RMNET
APC Smart UPS SU2200US SU2200X106
APC Smart UPS SU2200X111 SU2200X115
APC Smart UPS SU2200X179 SU2200X180
APC Smart UPS SU2200X93 SU3000RMX93
APC Smart UPS SU3000US and others.

Please note: APC & RBC are registered trade marks of American Power Conversion Corporation and MDS Battery Ltd use them for reference purposes only.

We would also wish to make it clear that MDS Battery Ltd are not an authorised APC dealer and this is not an APC branded product.

All prices include free mainland UK delivery - other than certain remote areas that may attract a delivery surcharge.

All Royal Mail deliveries are sent by first class post and are free to all UK postcodes.

Most UPS deliveries are free however remote areas may have a delivery surcharge; these are generally the Scottish Highlands and Islands, most off shore islands and a few other remote or inaccessible parts of the UK.

Certain products are unavailable for post/courier delivery due to restrictions on shipping hazardous substances; these will be available for collection only or in most instances can be shipped via specialist courier or pallet service at an additional charge.

If you have any delivery problems, require technical assistance or would simply like to speak to a human being then please call us.

For further delivery information click here

What's supplied with this kit?
The MDS11 replacement  kit includes the replacement batteries, all necessary wiring and connectors, a tutorial CD and install date reminder sticker.

What batteries do you use?
The kits are all assembled using CSB batteries - these are the original batteries that APC use when the UPSs are manufactured and we are the sole UK importer for CSB so you can be sure you are getting exactly the right replacement battery kit.
